♦ Round Tube Shoring Bar
If you didn't find what you are searching in below, please do contact with us, we are always interested in designing and
manufacturing for you.
manufacturing for you.

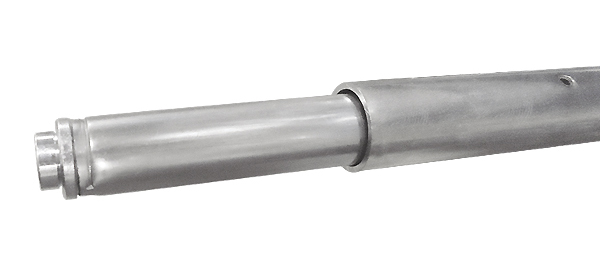

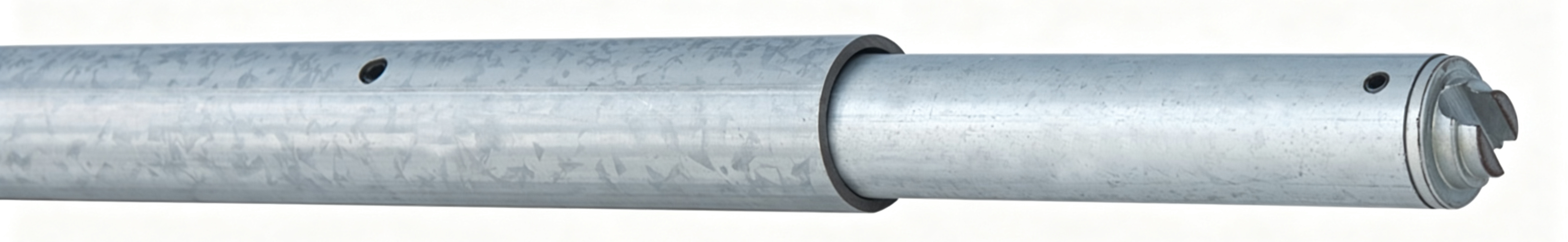

• Steel Round Shoring Bar
| Item No. | Spec./In | Weight/KG | WLL /KG | Series/Hole |
|---|---|---|---|---|
| SR-SB01 | 79-93 | 7.10 | 230 | F / 1" |
| SR-SB02 | 92-106 | 7.98 | F / 1" | |
| SR-SB03 | 79-93 | 7.08 | F / 3/4" | |
| SR-SB04 | 92-106 | 7.69 | F / 3/4" | |
| SR-SB05 | 100-114 | 8.35 | F / 3/4" |

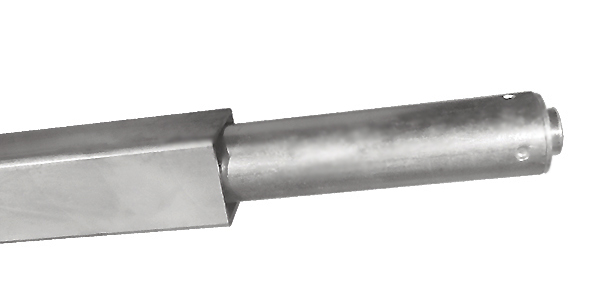

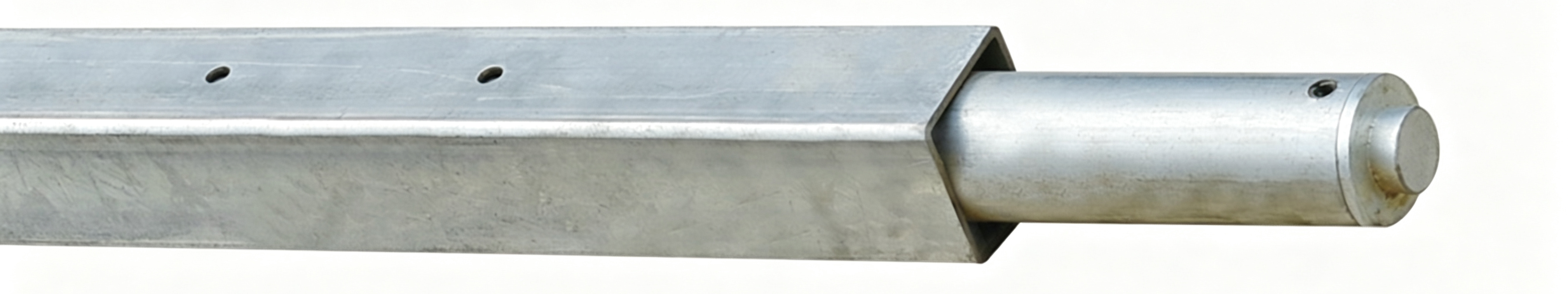

• Steel Square Shoring Bar
| Item No. | Spec./In | Weight/KG | WLL /KG | Series/Hole |
|---|---|---|---|---|
| SQ-SB06 | 81-95 | 7.38 | 230 | F / 3/4" |
| SQ-SB07 | 94-108 | 8.27 | ||
| SQ-SB08 | 102-116 | 9.08 | ||
| SQ-SB09 | 94-108 | 8.27 |

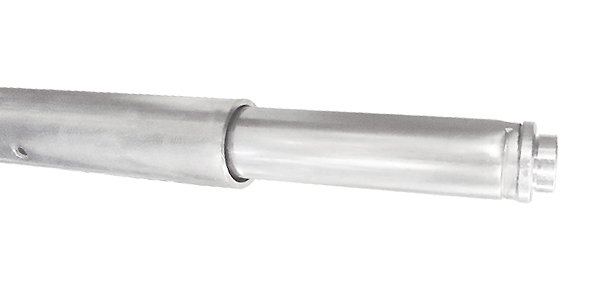

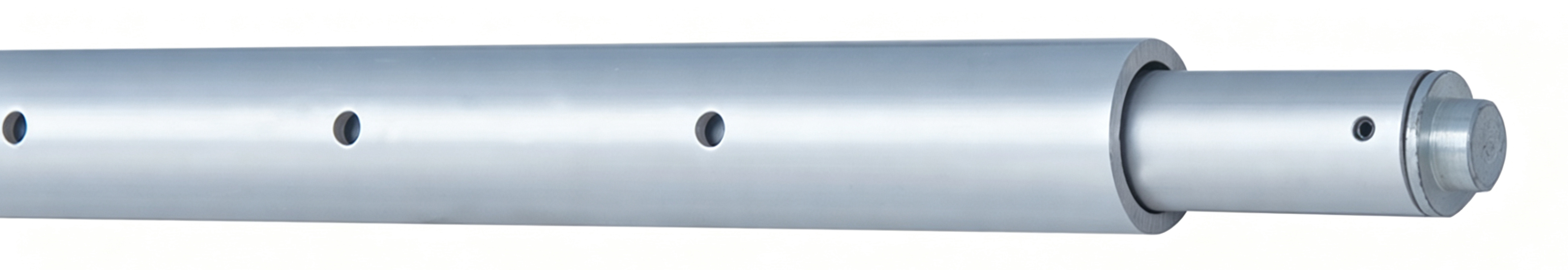

• Aluminium Round Shoring Bar
| Item No. | Spec./In | Weight/KG | Tube Size /MM | Plug |
|---|---|---|---|---|
| AR-SB10 | 1600-2000 | 4.36 | 42*5 | 19/24 |
| AR-SB11 | 2000-2400 | 3.79 | ||
| AR-SB12 | 2220-2650 | 4.28 | ||
| AR-SB13 | 2440-2520 | 4.31 | ||
| AR-SB14 | 2250-2600 | 4.20 | 45*4 | 19 |
| AR-SB15 | 2750-3100 | 4.88 | 24 |
• Shoring Fitting
| Item No. | Spec. /MM | Weight/KG | Pin Size |
|---|---|---|---|
| AR-SB09 | 30-50 | 2.70 | 690 |
| AR-SB10 | 50-70 | 3.80 | 840 |
| AR-SB11 | 70-90 | 4.95 | 1050 |
| AR-SB12 | 100-130 | 9.24 | 1400 |
