♦ Decking Beam
If you didn't find what you are searching in below, please do contact with us, we are always interested in designing and
manufacturing for you.
manufacturing for you.

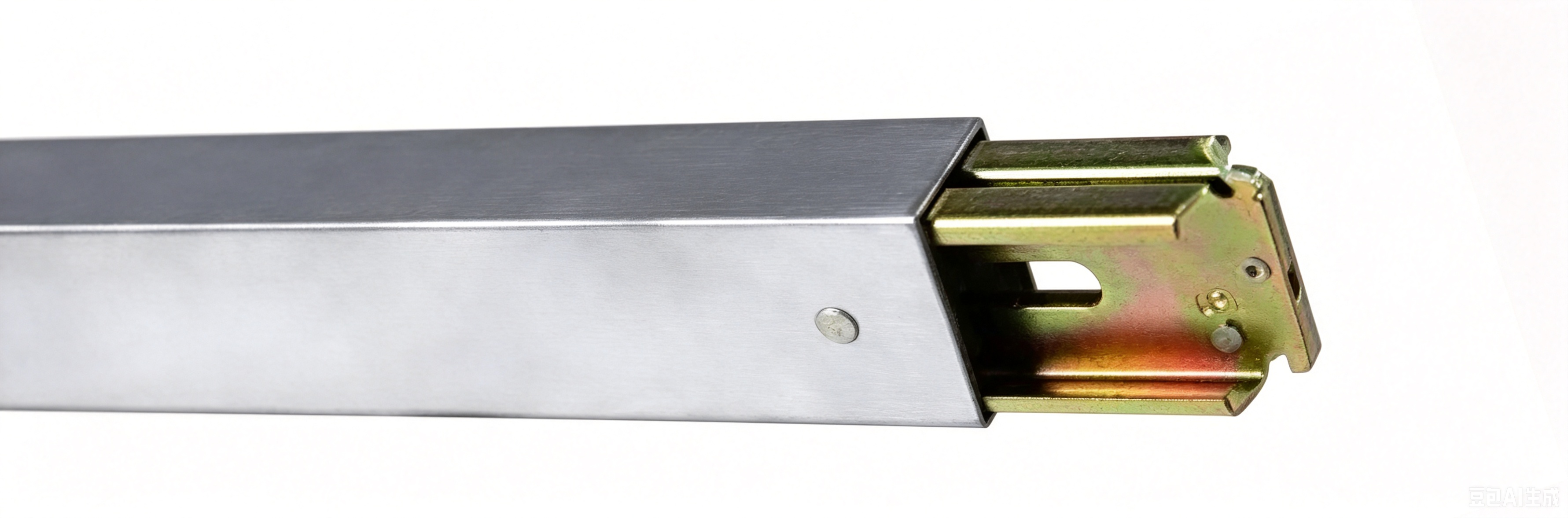

• Steel Decking Beam
| Item No. | Spec. /MM | Weight/KG | Head Size /mm | WBL /LB |
|---|---|---|---|---|
| SS-DB2185 | 2185-2463 | 11.14 | 317*72*55.5 /3.0 | 3000 |
| SS-DB2311 | 2311-2590 | 11.75 | ||
| SS-DB2324 | 2324-2616 | 11.82 |

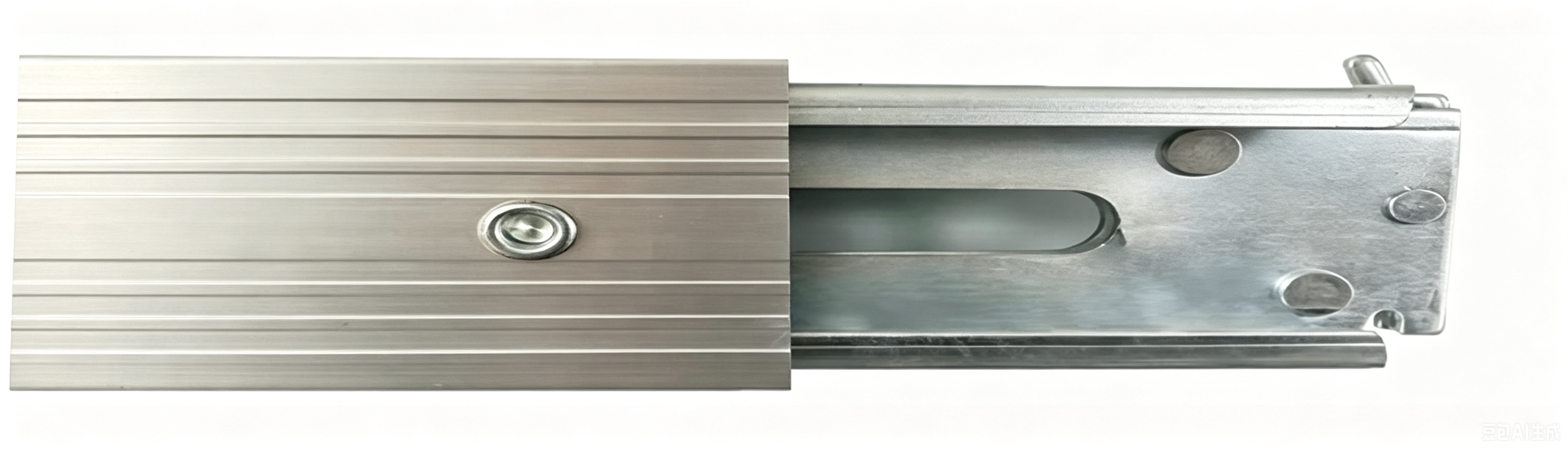

• Standard Aluminium Decking Beam
| Item No. | Spec. /MM | Weight/KG | Head Size /mm | WBL /LB |
|---|---|---|---|---|
| AS-DB2185 | 2185-2463 | 7.38 | 317*72*55.5 /3.0 | 2000 |
| AS-DB2311 | 2311-2590 | 7.75 | ||
| AS-DB2324 | 2324-2616 | 7.81 |

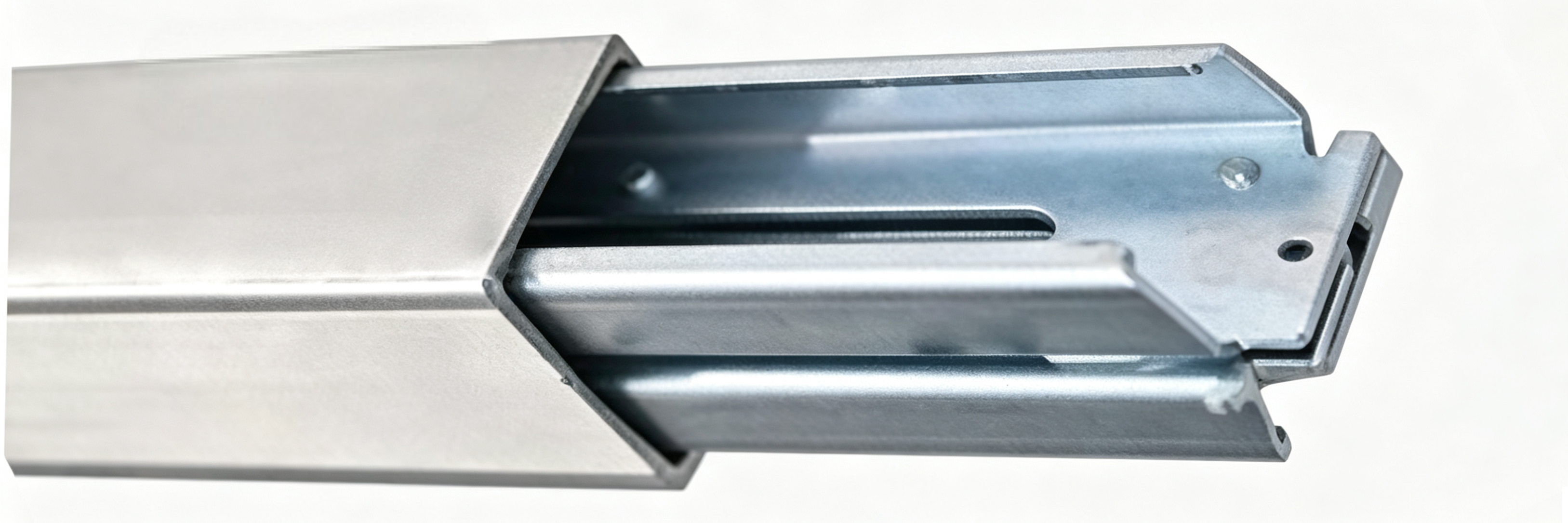

• Heavy Duty Aluminium Decking Beam
| Item No. | Spec. /MM | Weight/KG | Head Size /mm | WBL /LB |
|---|---|---|---|---|
| AH-DB2185 | 2185-2463 | 8.41 | 317*72*55.5 /3.0 | 3000 |
| AH-DB2311 | 2311-2590 | 8.85 | ||
| AH-DB2324 | 2324-2616 | 8.91 |
• Beam Fittings
| Item No. | Spec. | Weight/KG | WBL |
|---|---|---|---|
| 001 | 30-50 | 2.70 | 690 |
| 002 | 50-70 | 3.80 | 840 |
| 003 | 70-90 | 4.95 | 1050 |
| 004 | 100-130 | 9.24 | 1400 |
