♦ Cargo Bar

If you didn't find what you are searching in below, please do contact with us, we are always interested in designing and
manufacturing for you.

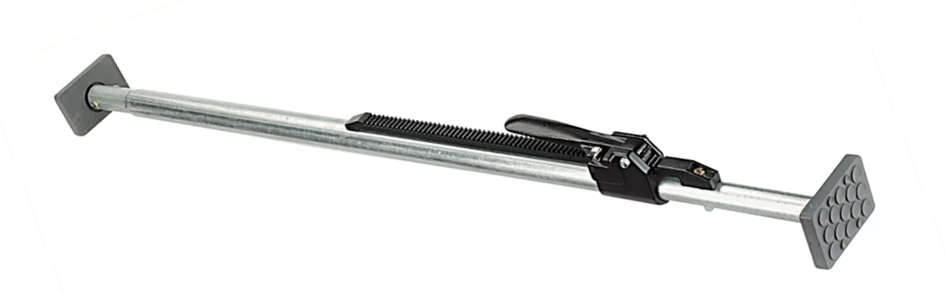

• Steel Cargo Bar with 38mm tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
S-CB3801 1168-1549 3.70 2*4 /Plastic
S-CB3802 1524-1905 4.10
S-CB3803 2095-2476 4.90
S-CB3804 2260-2641 5.10
S-CB3805 2350-2730 5.35
S-CB3806 2565-2946 5.60
S-CB3807 2616-2997 5.69

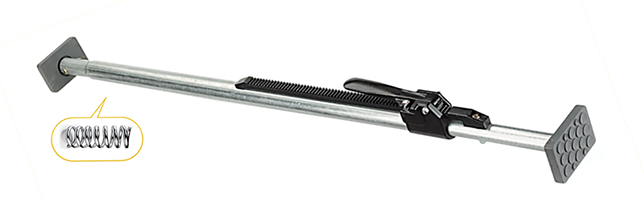

• Steel Cargo Bar with spring / 38mm tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
S-CB38S1 1168-1549 3.90 2*4 /Plastic
S-CB38S2 1524-1905 4.30
S-CB38S3 2095-2476 5.10
S-CB38S4 2260-2641 5.30
S-CB38S5 2350-2730 5.43
S-CB38S6 2565-2946 5.85
S-CB38S7 2616-2997 6.16

• Steel Cargo Bar with 42mm tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
S-CB4201 1168-1549 3.96 2*4 /Plastic
S-CB4202 1524-1905 4.34
S-CB4203 2095-2476 5.19
S-CB4204 2260-2641 5.46
S-CB4205 2350-2730 5.62
S-CB4206 2565-2946 5.90
S-CB4207 2616-2997 6.11

• Steel Cargo Bar with spring / 42mm tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
S-CB42S1 1168-1549 4.16 2*4 /Plastic
S-CB42S2 1524-1905 4.54
S-CB42S3 2095-2476 5.38
S-CB42S4 2260-2641 5.63
S-CB42S5 2350-2730 5.79
S-CB42S6 2565-2946 6.11
S-CB42S7 2616-2997 6.30

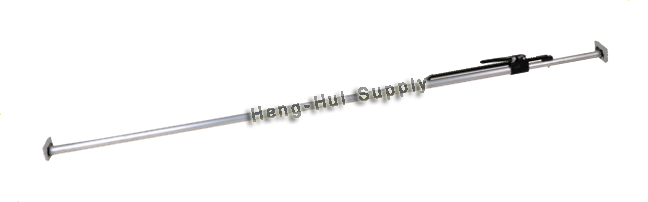

• Aluminium Cargo Bar /38mm tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
A-CB3801 1168-1549 3.01 2*4 /Plastic
A-CB3802 1524-1905 3.29
A-CB3803 2095-2476 3.80
A-CB3804 2260-2641 3.90
A-CB3805 2350-2730 4.10
A-CB3806 2565-2946 4.20
A-CB3807 2616-2997 4.30

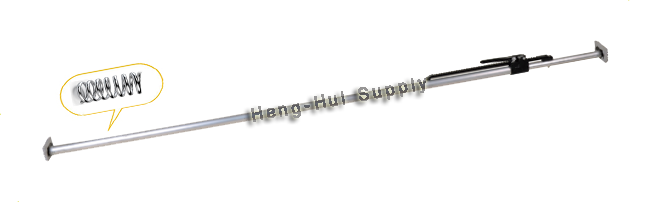

• Aluminium Cargo Bar with Spring /38mm Tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
AS-CBS01 1168-1549 3.29 2*4 /Plastic
AS-CBS02 1524-1905 3.64
AS-CBS03 2095-2476 4.09
AS-CBS04 2260-2641 4.25
AS-CBS05 2350-2730 4.35
AS-CBS06 2565-2946 4.50
AS-CBS07 2616-2997 4.58

• Aluminium Cargo Bar /42mm Tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
A-CB4201 1168-1549 3.08 2*4 /Plastic
A-CB4202 1524-1905 3.38
A-CB4203 2095-2476 3.89
A-CB4204 2260-2641 4.05
A-CB4205 2350-2730 4.20
A-CB4206 2565-2946 4.49
A-CB4207 2616-2997 4.63

• Aluminium Cargo Bar with Spring / 42mm Tube

Item No. Spec. /MM Weight/KG PADS /Inch /Material
A42-CBS01 1168-1549 3.45 2*4 /Plastic
A42-CBS02 1524-1905 3.76
A42-CBS03 2095-2476 4.25
A42-CBS04 2260-2641 4.40
A42-CBS05 2350-2730 4.50
A42-CBS06 2565-2946 4.65
A42-CBS07 2616-2997 4.75

• Cargo Bar Fitting

Item No. Spec. Weight/KG WBL
001 30-50 2.70 690
002 50-70 3.80 840
003 70-90 4.95 1050
004 100-130 9.24 1400
